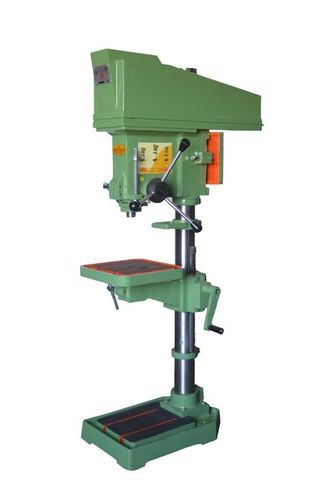

25mm Heavy Duty Pillar Drilling Machine With Fine Feed

Name: 25mm Heavy Duty Pillar Drilling Machine With Fine Feed
Brand: CHAMUNDA MECHANICAL WORKS
Price: 35000.00 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Unit

25mm Heavy Duty Pillar Drilling Machine With Fine Feed Specification

Spindle Speed
1440 OR 960 RPM RPM

Product Type
25mm Pillar drill Machine

Material
CI Casting , MSBar , SGI Casting

Computerized
No

Automatic Grade
Manual

CNC Or Not
Normal

Weight (kg)
200 Kgs Kilograms (kg)

Capacity
1" (25MM) Kg/hr

Color
GREEN

25mm Heavy Duty Pillar Drilling Machine With Fine Feed Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cheque, Cash Advance (CA)

Supply Ability
35 Units Per Month

Delivery Time
15 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
South India, Central India, East India, Maharashtra, Tamil Nadu, North India

About 25mm Heavy Duty Pillar Drilling Machine With Fine Feed

Our company is profoundly engaged in manufacturing and supplying an extensive range of Heavy Duty Pillar Drilling Machine. This machine is highly demanded in the market for its noiseless operation that provides ease of drilling. In order to design this machine, we procure quality assured components and modern technology. Provided with an adequately ribbed base plate for stopping deflection, the Heavy Duty Pillar Drilling Machine is suitable for heavy duty works.

Features & Benefits:

Greater accuracy, capacity and reliability
The offered drilling machine is known for its application specific design.
Sturdy construction
Used for metal sheets, plastic and wood etc.
Affordable price
Long working life

Specifications:

Drill Capacity Mild Steel	25 mm
Pillar Diameter	39/16" 90 mm
Spindle nose to table distance	6" 152 mm
Spindle nose to base distance	1100 mm
Distance from Spindle center to pillar Face	9" 235 mm
Taper in Spindle	MT-3.MT-4
Number of Speed	8 Speed
Range of Speed	(8) 96 x 3200 R.P.M
Table Size
Base Size ( Machined Area)	28 x 16" 575 x 400 mm
Over all Base Size
Size of Table Square	(8) 96 x 3200 RPM.
Size of Table Round	12" x 12" 285 mm
Spindle Travel	6" 152mm
Pillar Length	1422mm
Overall height with Pulley Guard	85" 1625 mm
V Belt Section	B-49
Weight ( Approx)	200 Kg. (Approx)
Motor 1440 RPM 3phase 440 Volts	1 HP

Superior Drilling Capacity

Engineered to handle up to 25mm diameter holes, this machine offers remarkable performance for heavy-duty jobs in workshops and industrial manufacturing environments. The fine feed feature ensures precise control.

Durable Construction

Constructed using high-quality CI Casting, MSBar, and SGI Casting materials, the 25mm Pillar Drilling Machine offers a long-lasting build, minimizing maintenance requirements and ensuring consistent operation.

User-Friendly Operation

With a manual control system and no computerized components, users can operate this drilling machine safely and effectively, making it suitable even for less technologically advanced settings.

FAQs of 25mm Heavy Duty Pillar Drilling Machine With Fine Feed:

Q: How do I operate the 25mm Heavy Duty Pillar Drilling Machine with Fine Feed?

A: To operate the machine, securely mount your workpiece, select the appropriate spindle speed (1440 or 960 RPM), and use the fine feed feature to control drilling depth. Always follow standard safety procedures during operation.

Q: What materials can this pillar drilling machine handle?

A: This machine is capable of drilling through various materials, including metals, plastics, and other rigid materials, due to its sturdy CI Casting, MSBar, and SGI Casting construction.

Q: When is it recommended to use the fine feed function?

A: The fine feed should be used for applications requiring high precision, such as when drilling delicate materials or ensuring exact hole depths in critical components.

Q: Where can the 25mm Heavy Duty Pillar Drilling Machine be installed?

A: This machine is suitable for installation in industrial workshops, manufacturing units, tool rooms, and fabrication facilities where robust and accurate drilling is necessary.

Q: What is the process for adjusting spindle speed on this pillar drilling machine?

A: To adjust the spindle speed, set the appropriate gear or pulley as detailed in the machines manual to switch between 1440 RPM and 960 RPM, depending on the task requirements.

Q: What are the main benefits of using this drilling machine?

A: Key benefits include high drilling capacity, reliable performance, durable construction, and user-friendly, manual controls, making it ideal for repeated heavy-duty operations with consistent accuracy.
